Miniflow 400 - MICKEY EDITION

Miniflow 400 - MICKEY EDITION

The smallest flowpack in the world. With a high technological content, it is very versatile and flexible, also available in a self-propelled version.

Ideale per

Single-serving biscuits
Single-serving biscuits
Also ideal for single packaging of small candies and sweets.
Chocolate
Chocolate
Suitable for chocolate and chocolates of various shapes and sizes, with or without fillings.
Bakery products
Bakery products
Suitable for any baked product, it guarantees the maintenance of the organoleptic properties.
all products
Ideale per
Why <br> choose it

Why
choose it

  • Fast delivery times
  • Little space needed for installation, installed on wheels to be able to move it easily
  • It does not require Compressed Air
  • 220V single-phase power supply
  • Not just a machine, but also a design element for your laboratory
  • Great versatility and flexibility

Until
80 packs per minute

Maximum film band size: 400mm

foto galleria
foto galleria
foto galleria
foto galleria
foto galleria
foto galleria

The lines developed by DM Packaging are all Industry 4.0 compliant .

For these machines and thanks to this level of certified quality, it is possible to obtain numerous tax breaks on the purchase of the product.

Contact us and discover the benefits

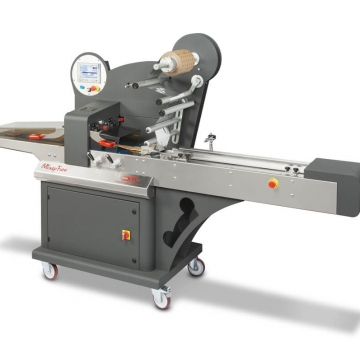

MINIFLOW 400

Compact, functional and design, the smallest and most versatile flowpack. EasyToUse design to make format changeover and use simple and intuitive even by inexperienced operators.

Technical characteristics

  • Power supply 220 V
  • Weight 320 Kg
  • Sealing bars diam. 120 mm
  • 2 Pairs of rollers, the first for the film feed, the second for sealing (diam 87 mm)
  • Safety casing with stoppage system in case of opening.
  • Motorised product unloading belt.
  • Emergency buttons with immediate interruption of the work cycle. .
  • Photocell for print centring included.
  • Max film reel 380 mm
  • Cone-type film holder shaft
  • Sliding surfaces in AISI 304 steel compliant with CE standards
  • Dimensions 1800 x 800 x H1800
  • Maximum speed 80 pcs/min

Technology

  • 3 axles controlled by servo motors and drives.
  • CAN Bus communication
  • Plc with integrated 7” colour touch screen
  • Ability to store product recipes
  • Machine backup including parameters and recipe that can be exported and imported via USB stick
  • Print and product centring via touch screen.
  • Easy diagnosis for problem solving.
  • Connectable to teamviewer for assistance via LAN cable and VNC

Optional

  • Rotary or heat transfer printer
  • No product no Bag
  • AISI 304 stainless steel body
  • Euroslot
  • Zigzag blades
  • Fixed conformer.
  • Elongated bench
  • Double centre bar, to increase production speed

Product dimensions and film band

A: Max 150 mm | B: Max 300 mm | C: Max 75 mm
A: Max 400 mm

Minoflow 400 - Mickey Edition





Contact us for a quote

Fill out the form and indicate the products you want to pack: together we will configure the solution that best suits your needs!
