The demand for protective masks suffered a sudden and uncontrolled peak due to the COVID-19 emergency. This machine is the solution to current and future demands both to boost European production by offering the right technology to face an intense production process.
The numbers of requests for masks are destined to grow even after the emergency, the virus will radically change the uses of the population and will be a warning for the European health care that will have to adapt to provide more and more PPE to its health care workers.
There is an average monthly need, for the Italian population, of 90 million pieces, while for the Lombard health care alone it is estimated a daily consumption of 1.1 million masks.
A guarantee of quality and precision in finishing. Reliable and efficient on large quantities.
A technology designed, developed, produced and assembled completely in Italy.
Ask us for all the support you need for guaranteed transport and delivery to your location.
A complete and 360 degree service. From the first consultation until the final delivery of the product.
Masks / hour
Masks / day
Automatic transfer of the masks to the flowpack packaging machine, so removing the operator's handling for the transfer from the production plant to the packaging machine.
Sanitization of fabrics during the production process

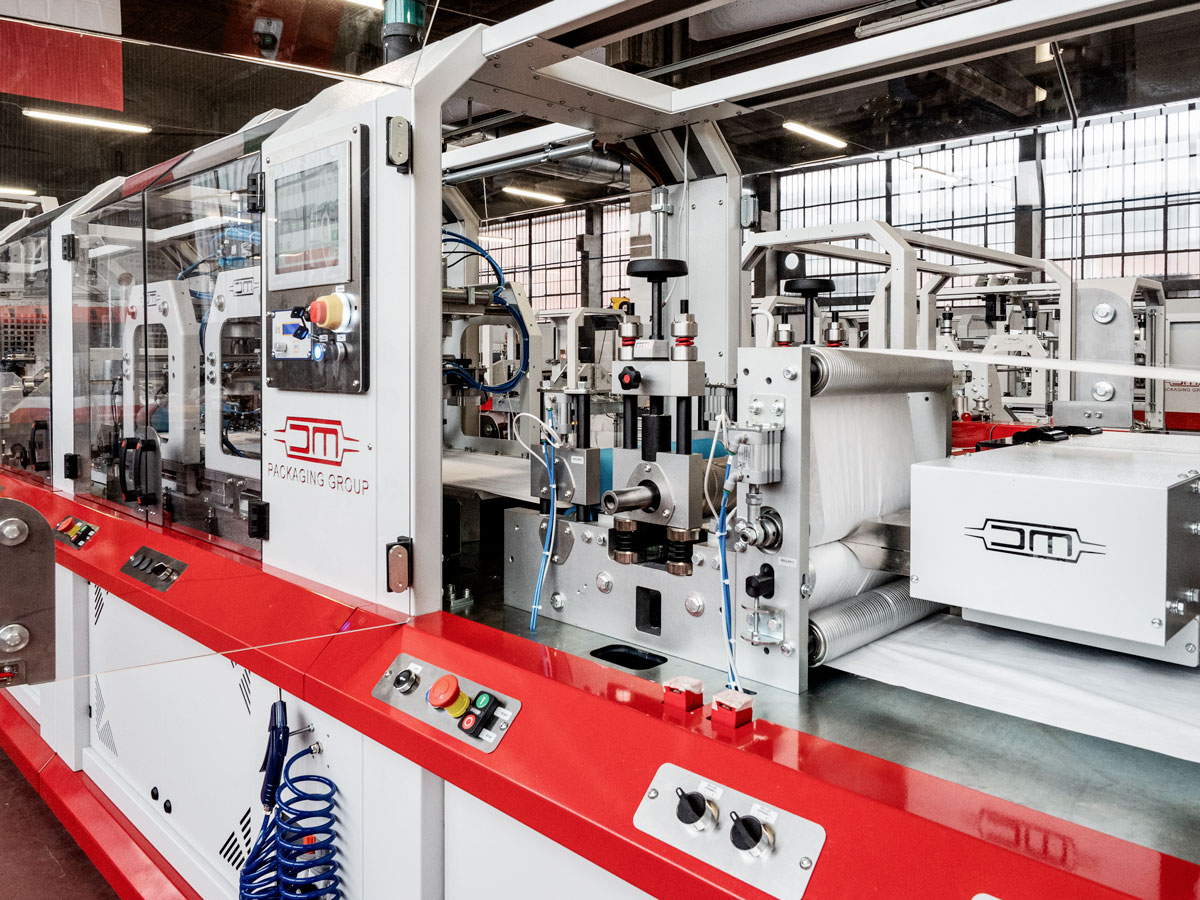

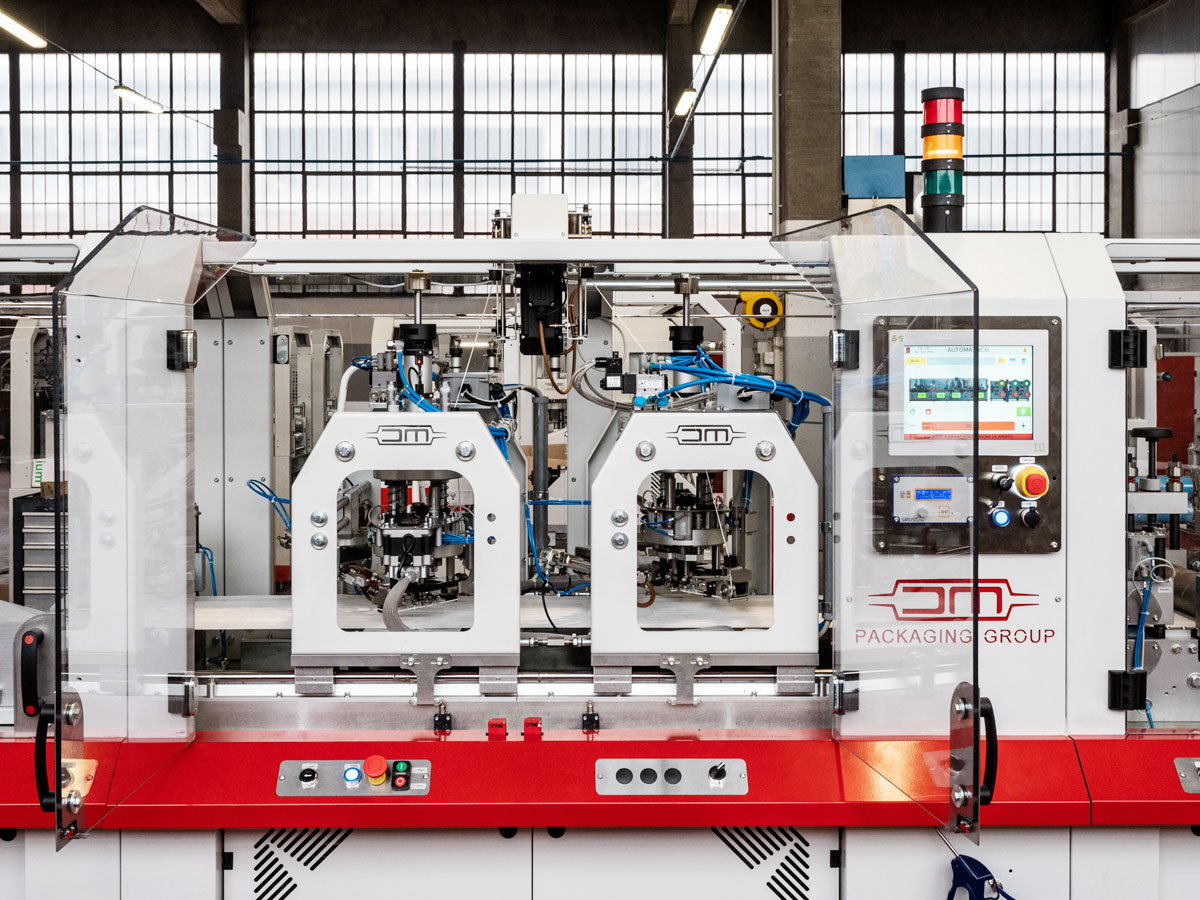

Machine control and management through PLC + HMI Touch Screen 10" panel
Approximate plant dimensions: L10,000 X D1,500 X H 2,200mm

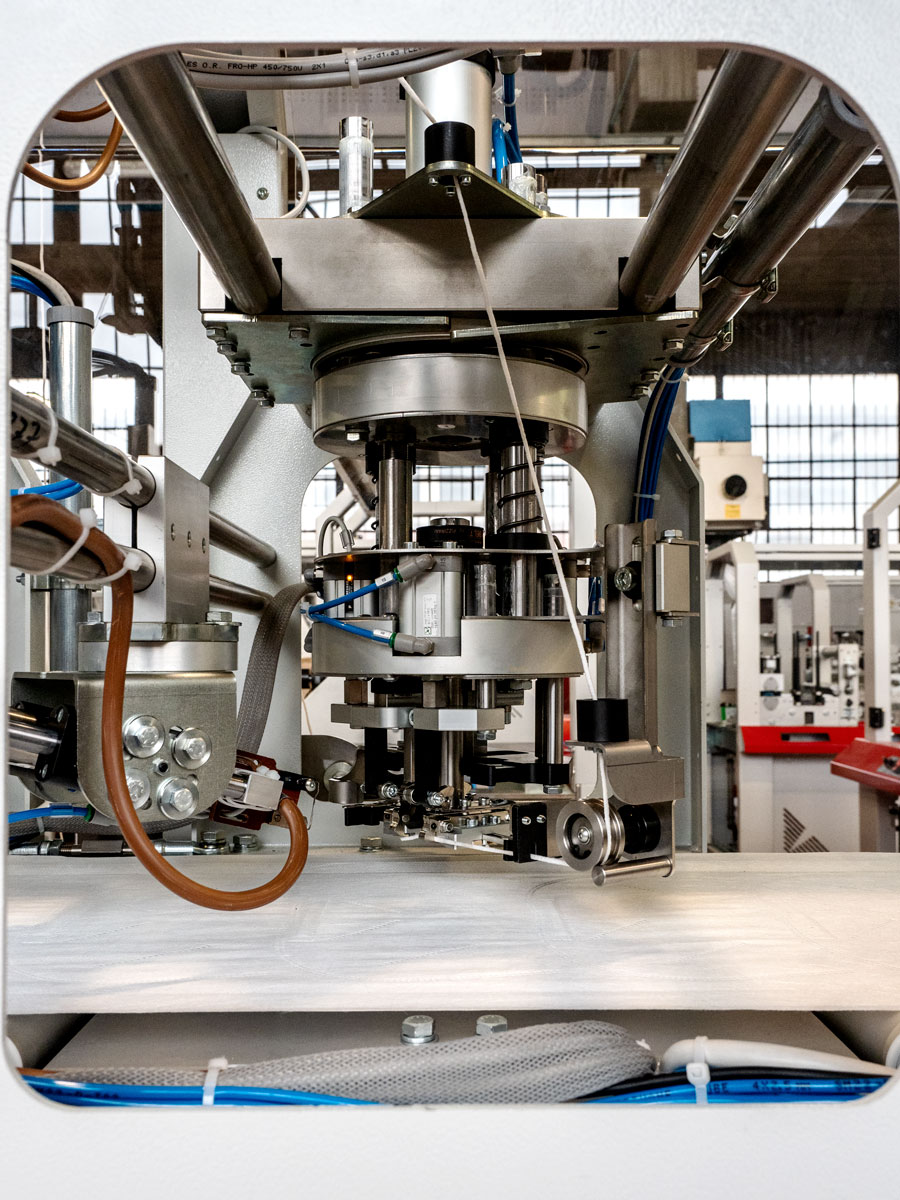

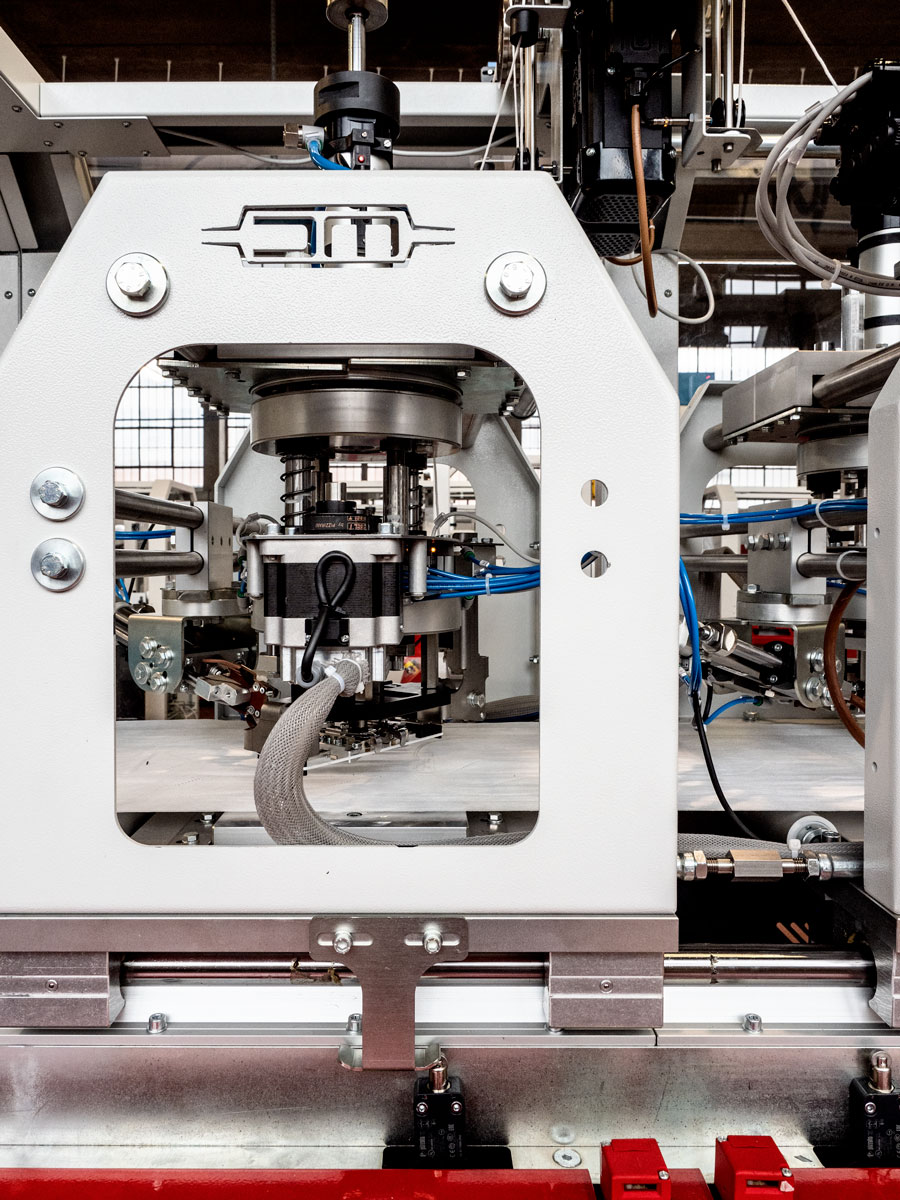

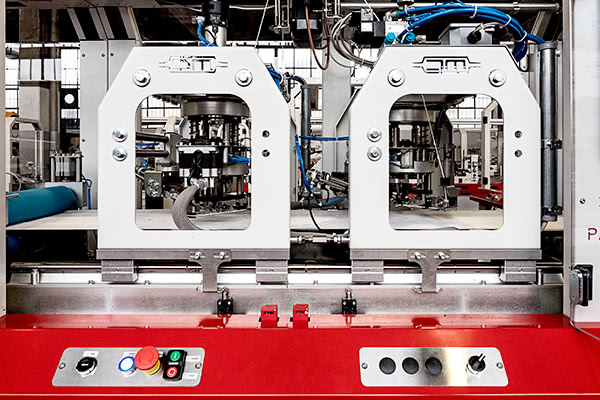

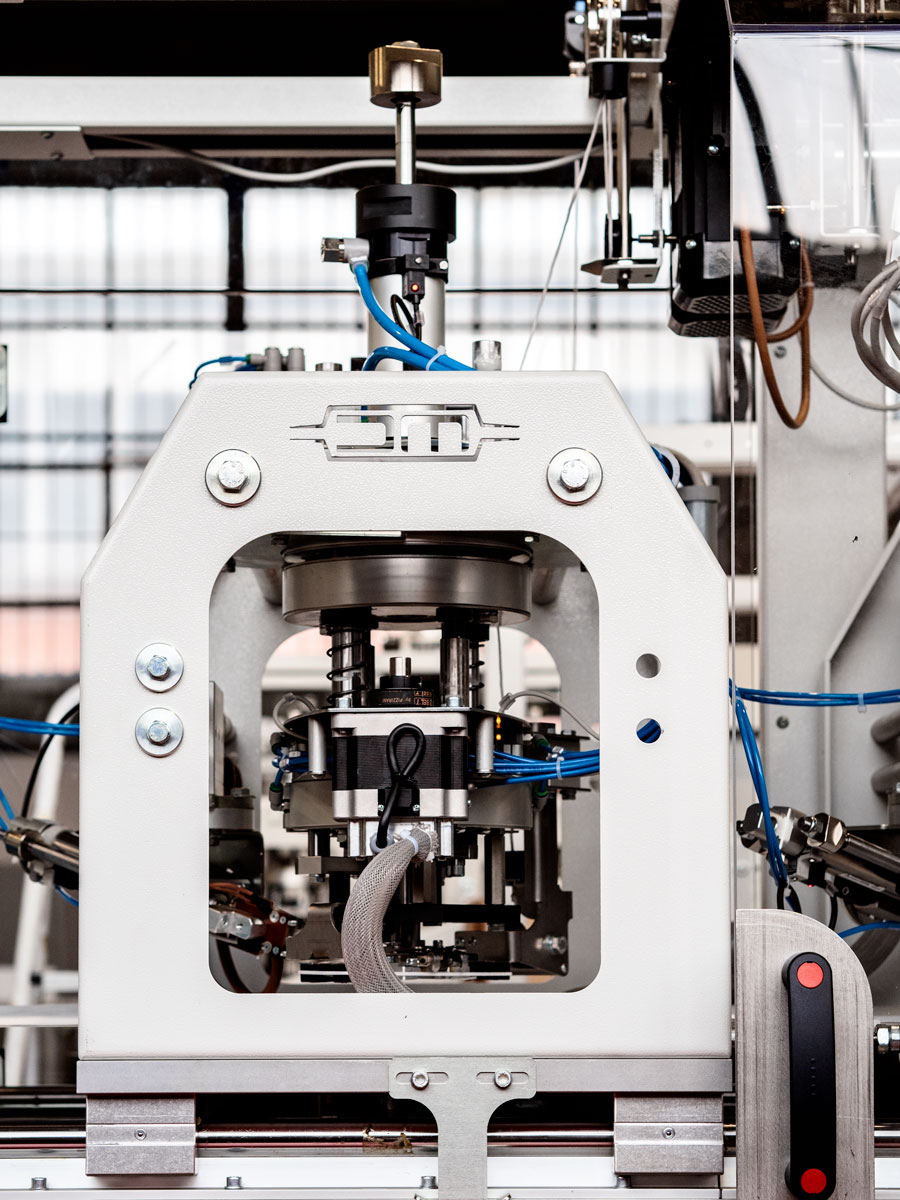

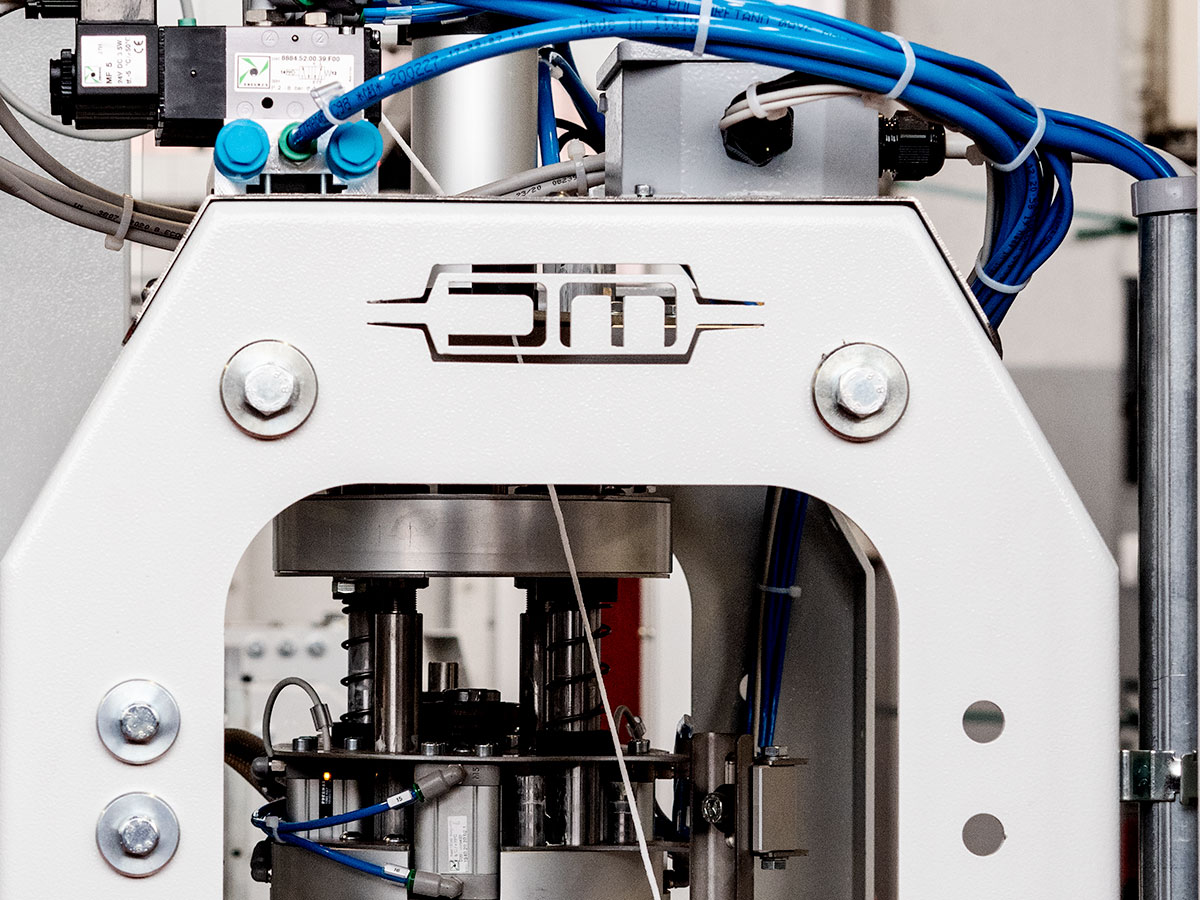

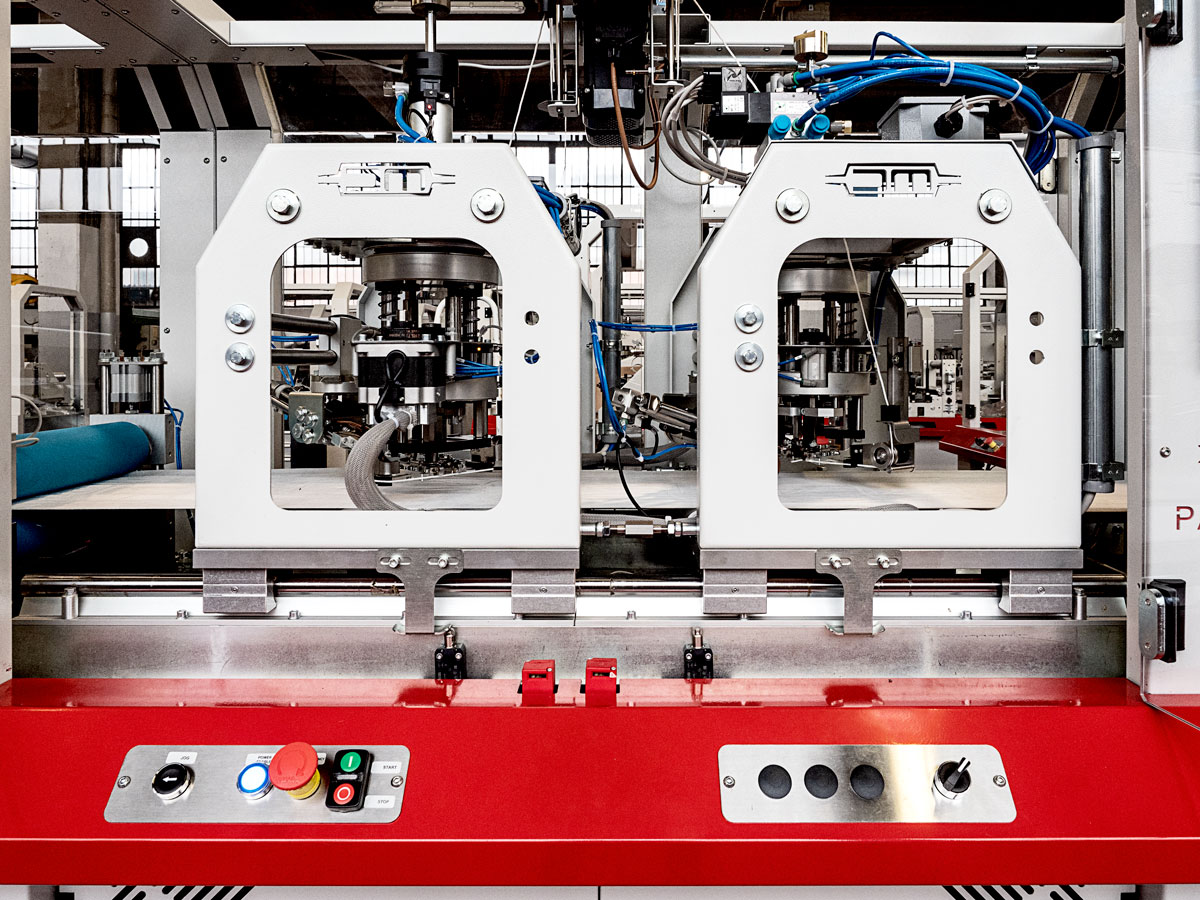

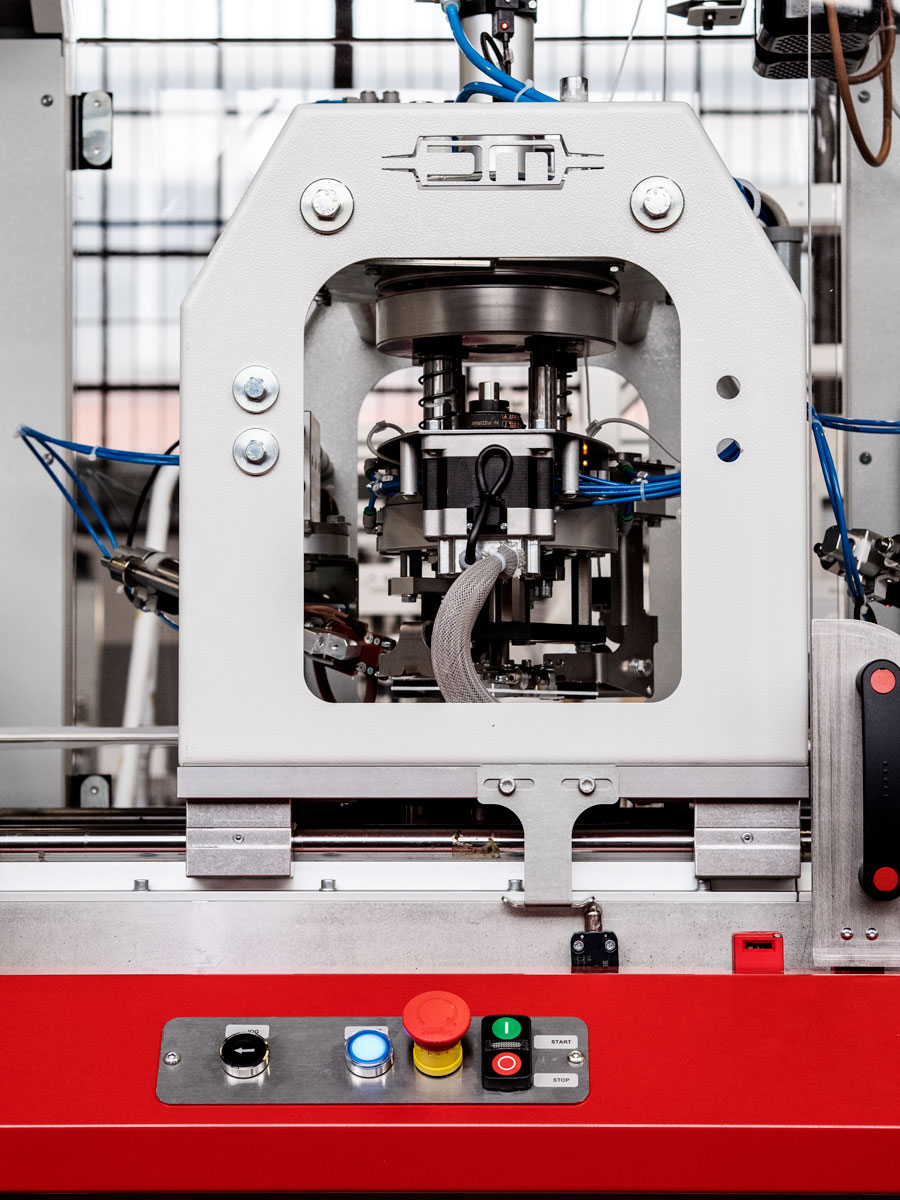

Ultrasonic system welders - Ultrasonic power: primary welding 2 Kw, welding Laces 1 Kw/cad, frontal welding 2 Kw
Axes management through nr.7 Brushless servomotors by Schneider Electric brand.

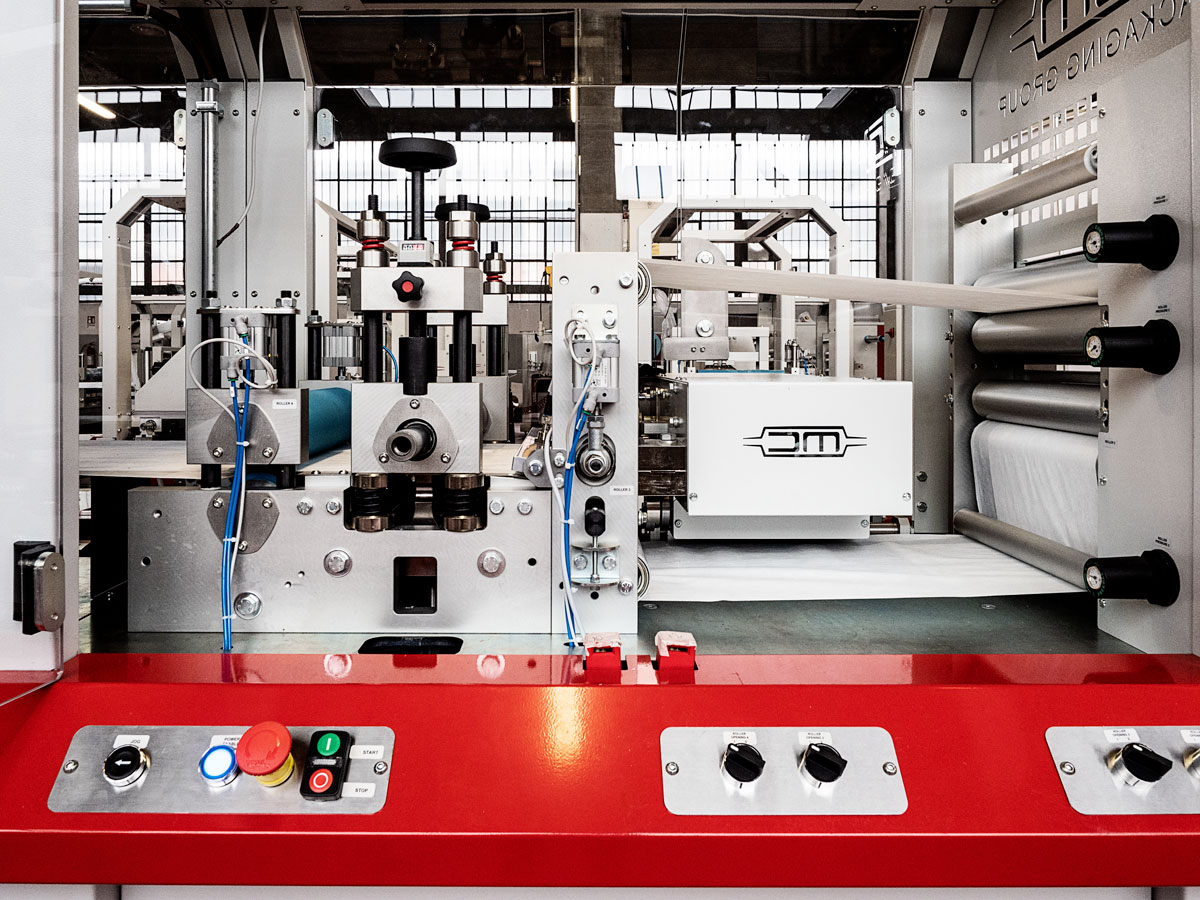

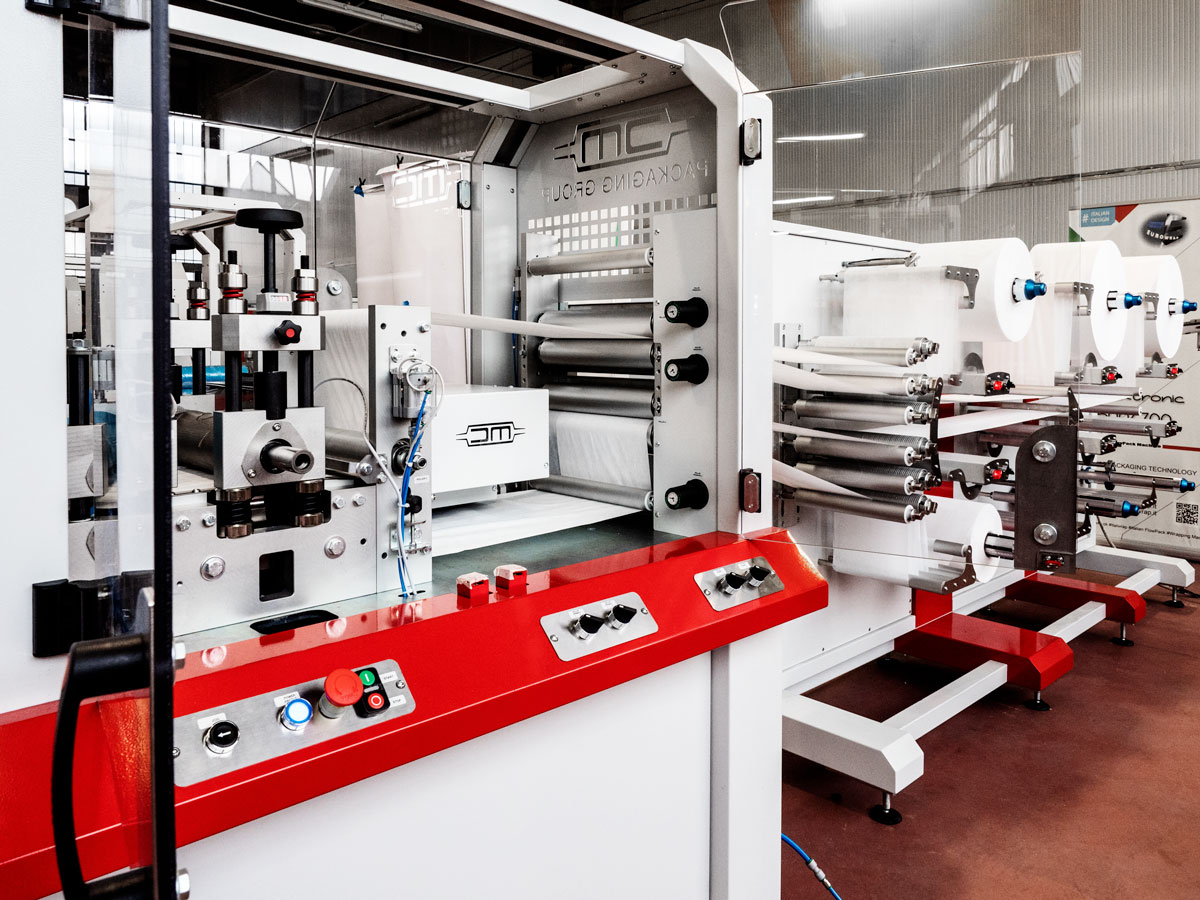

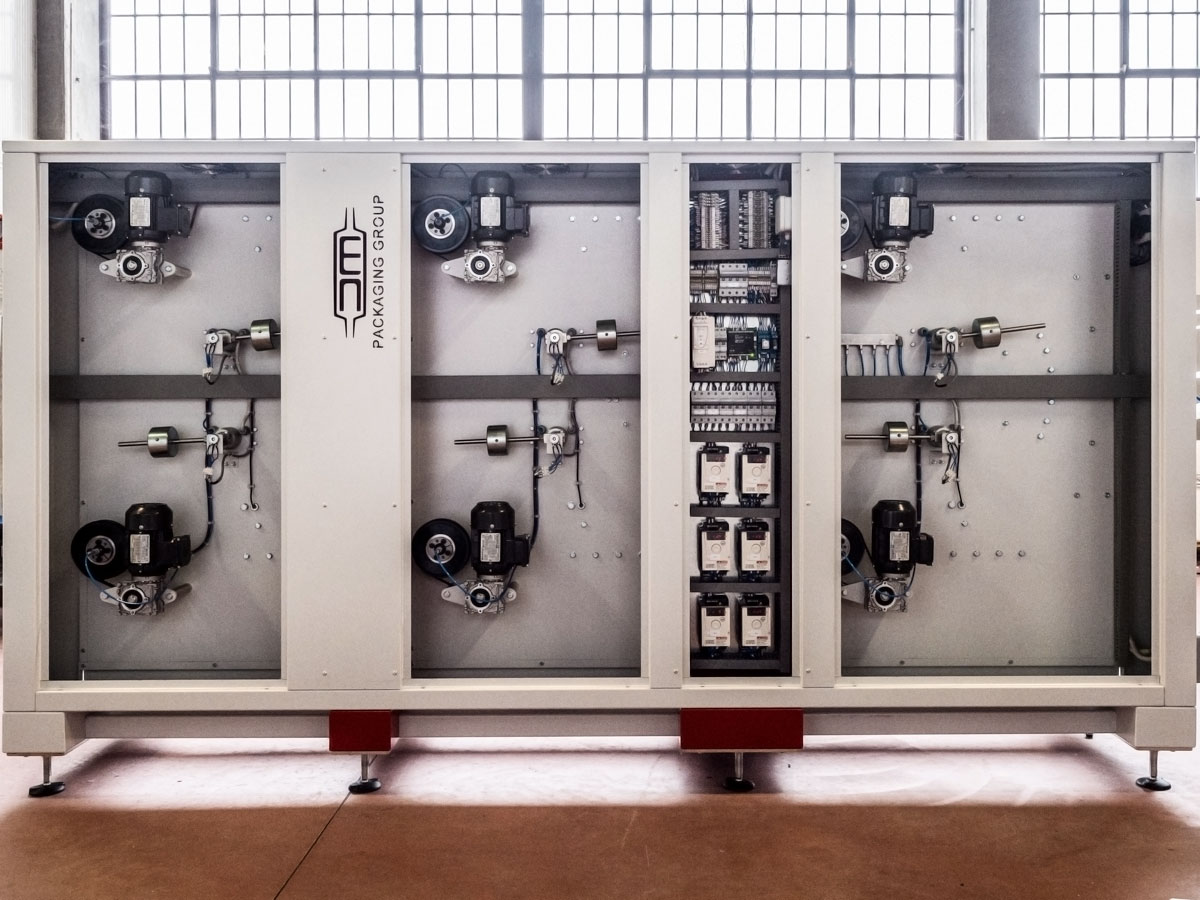

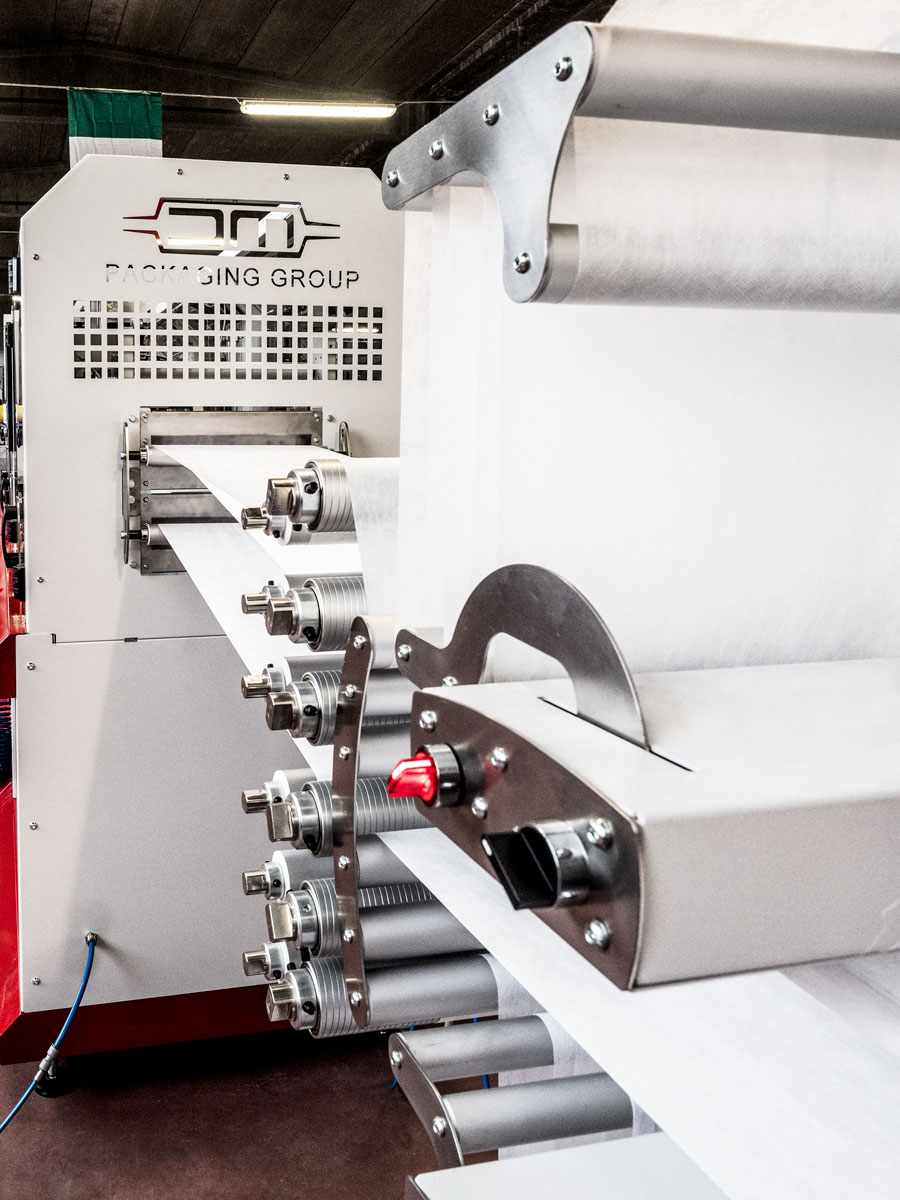

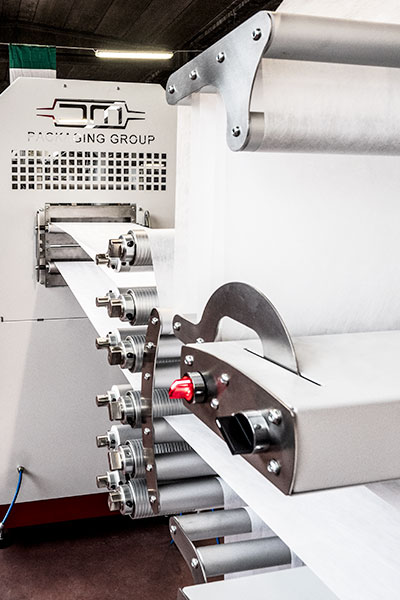

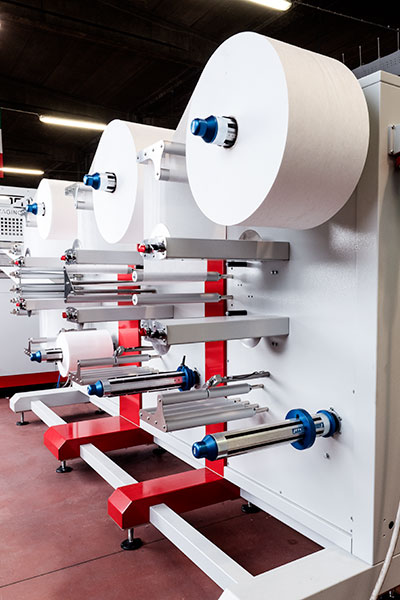

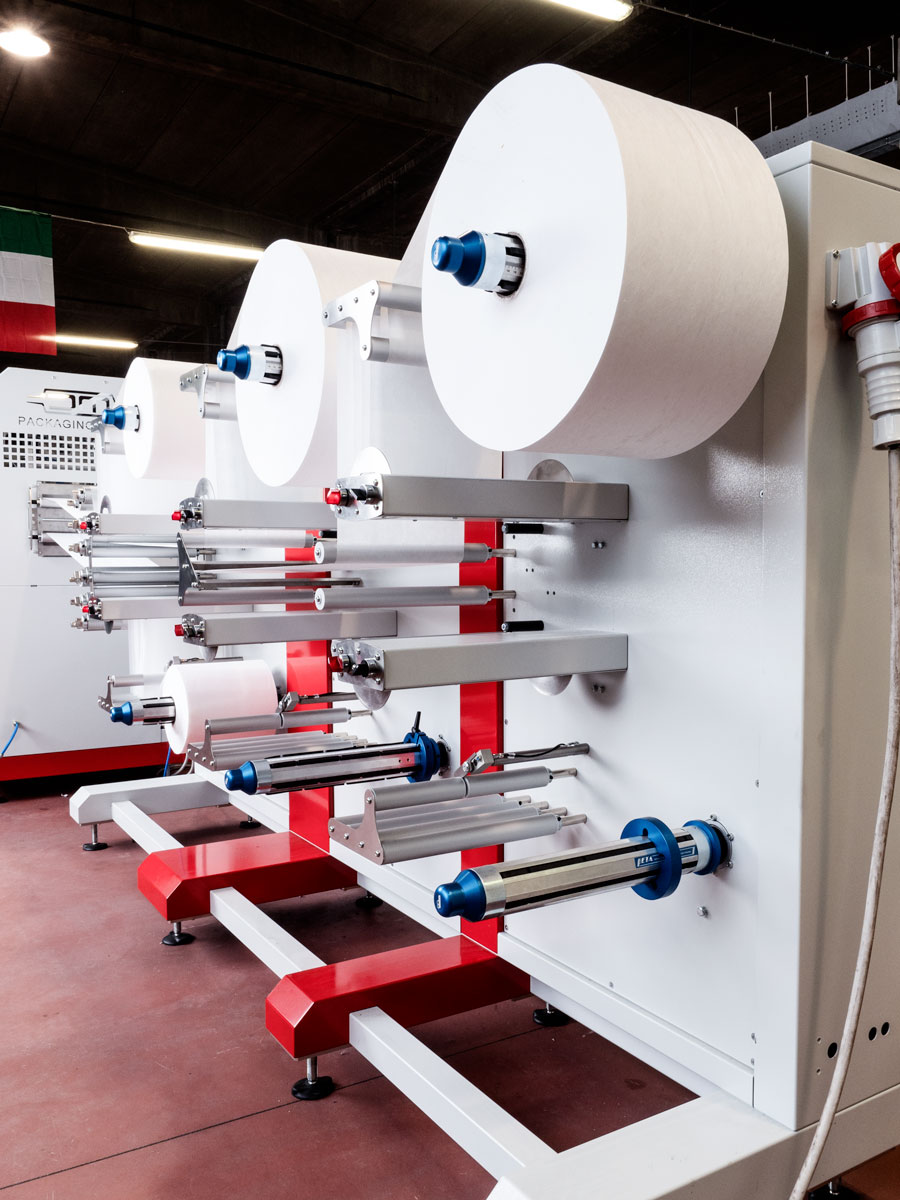

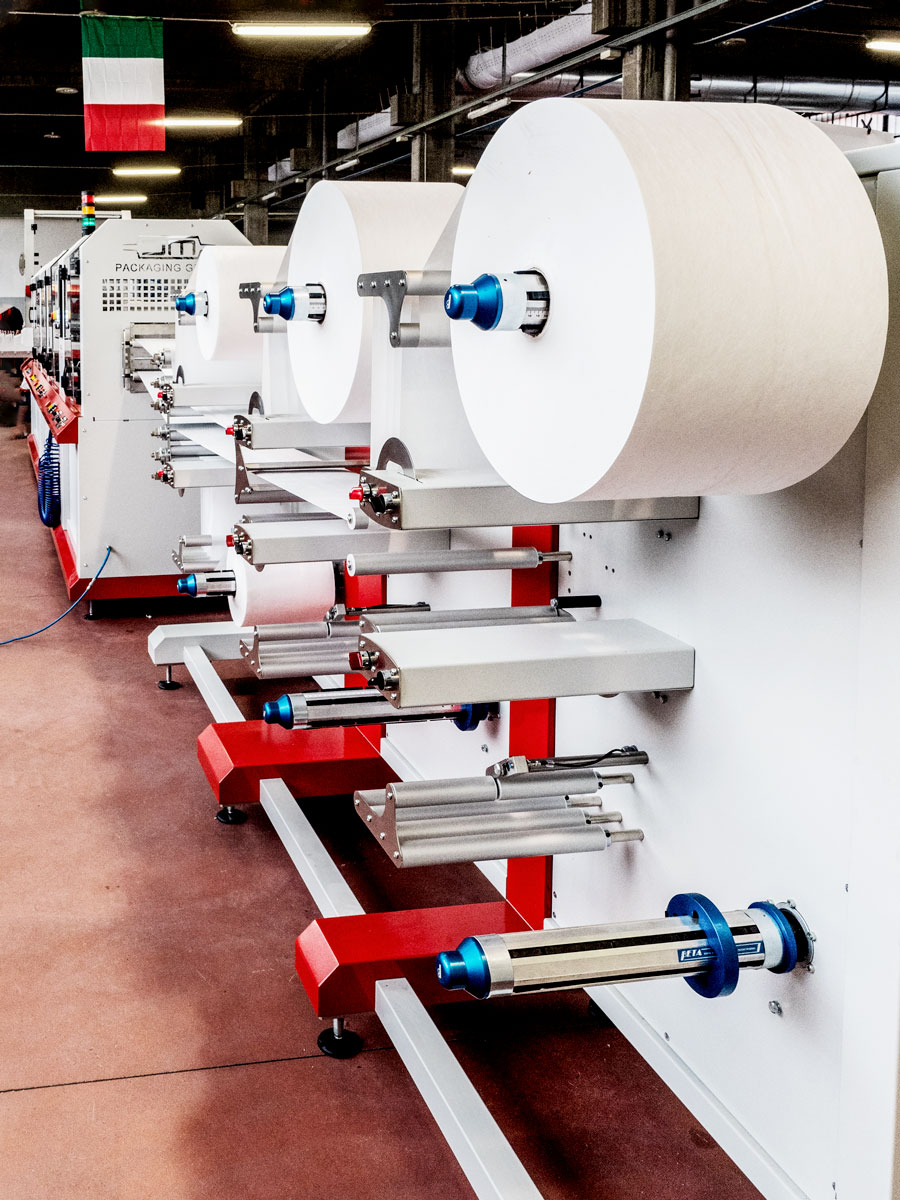

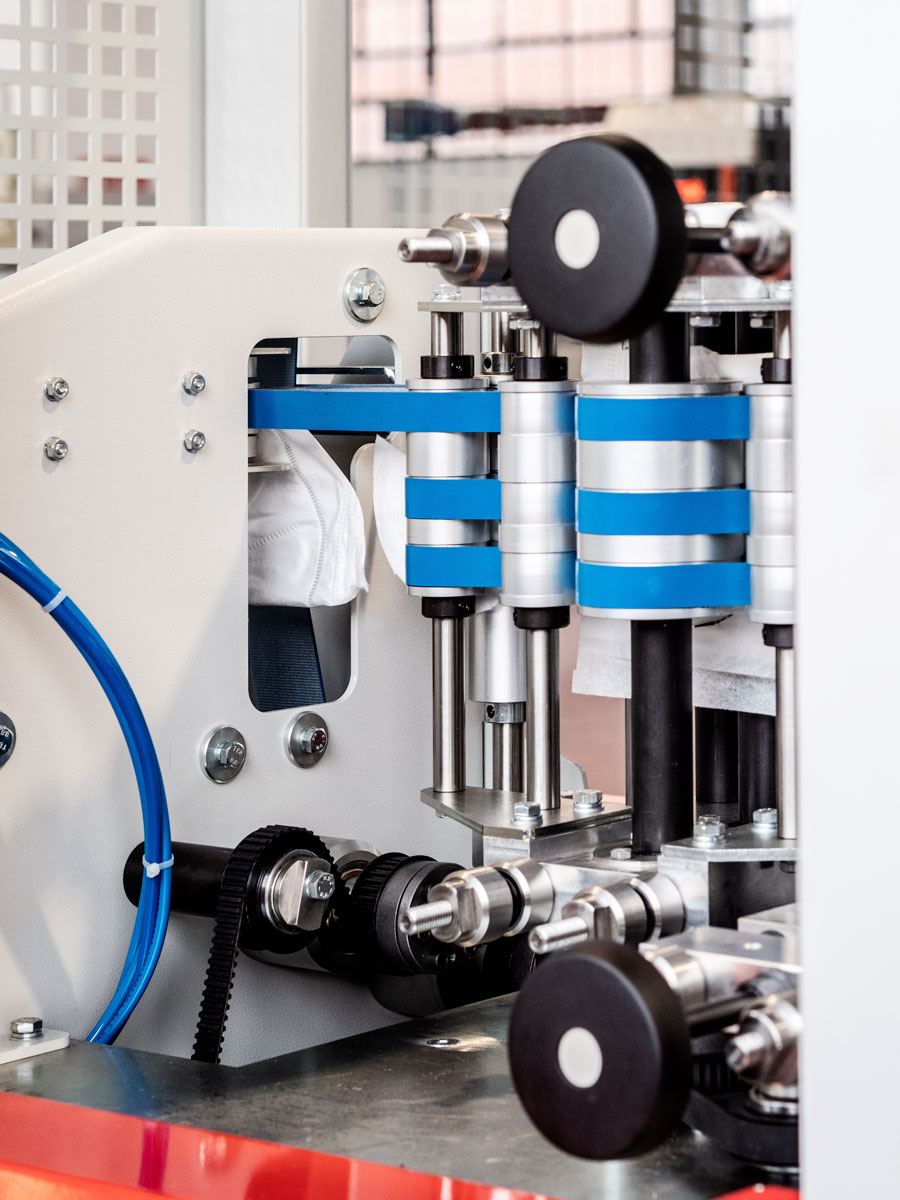

Material unwinding system by means of motorized reel-holder with 6 AC motors and managed by inverter

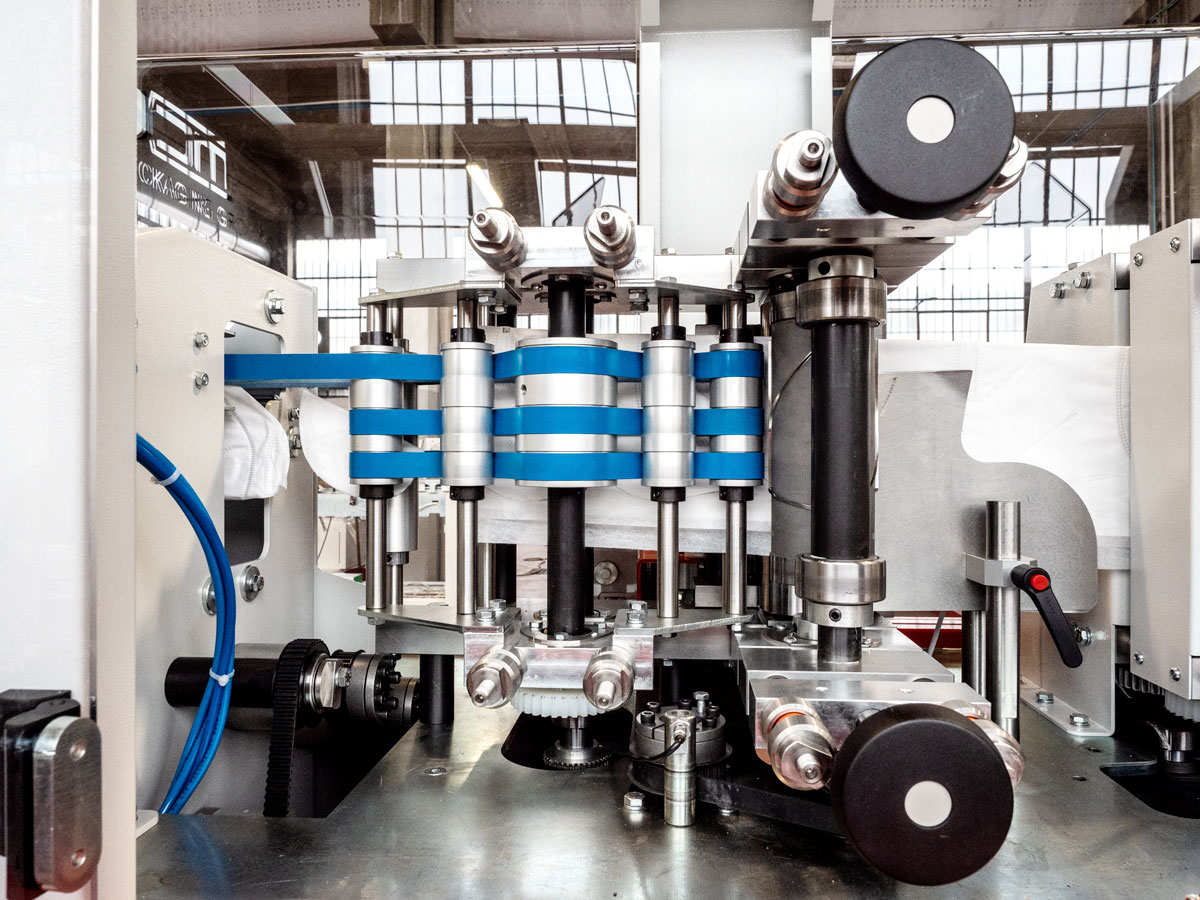

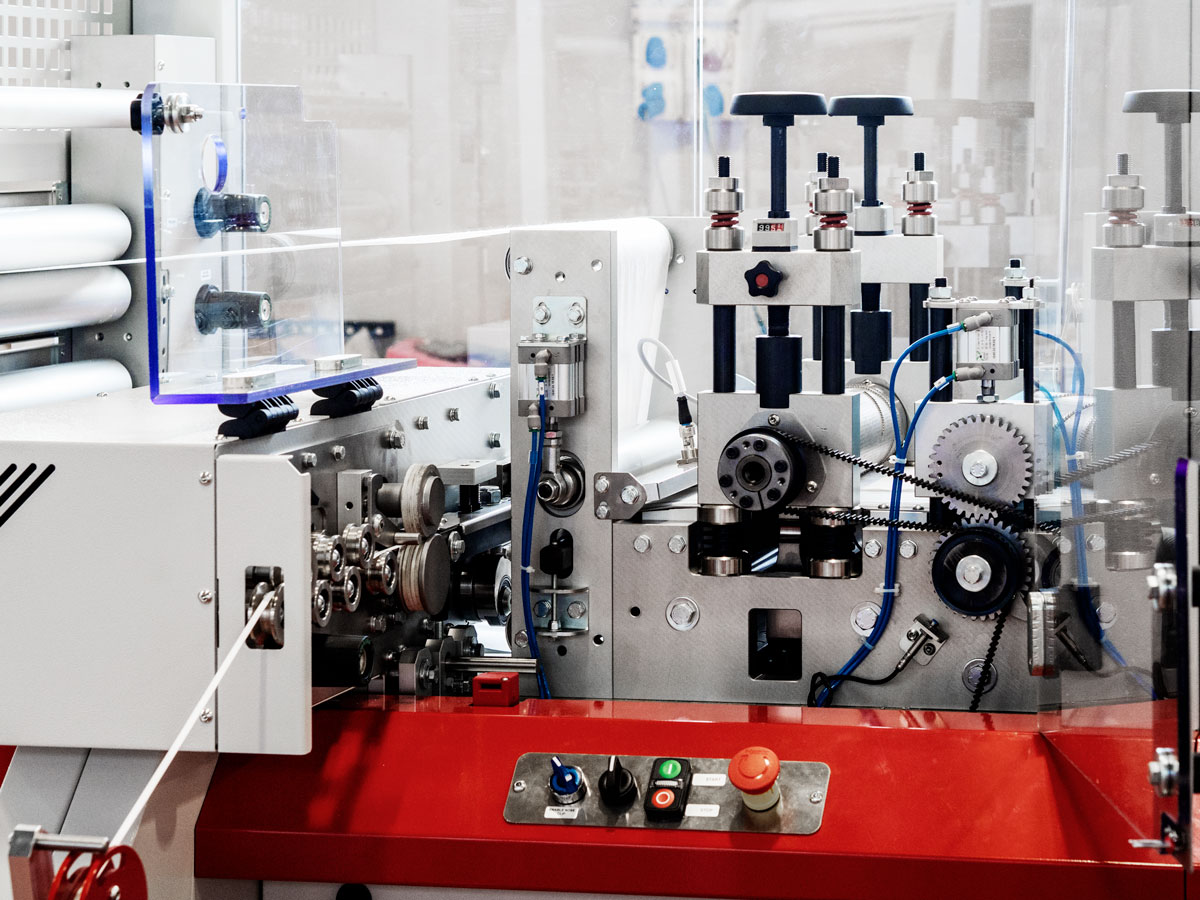

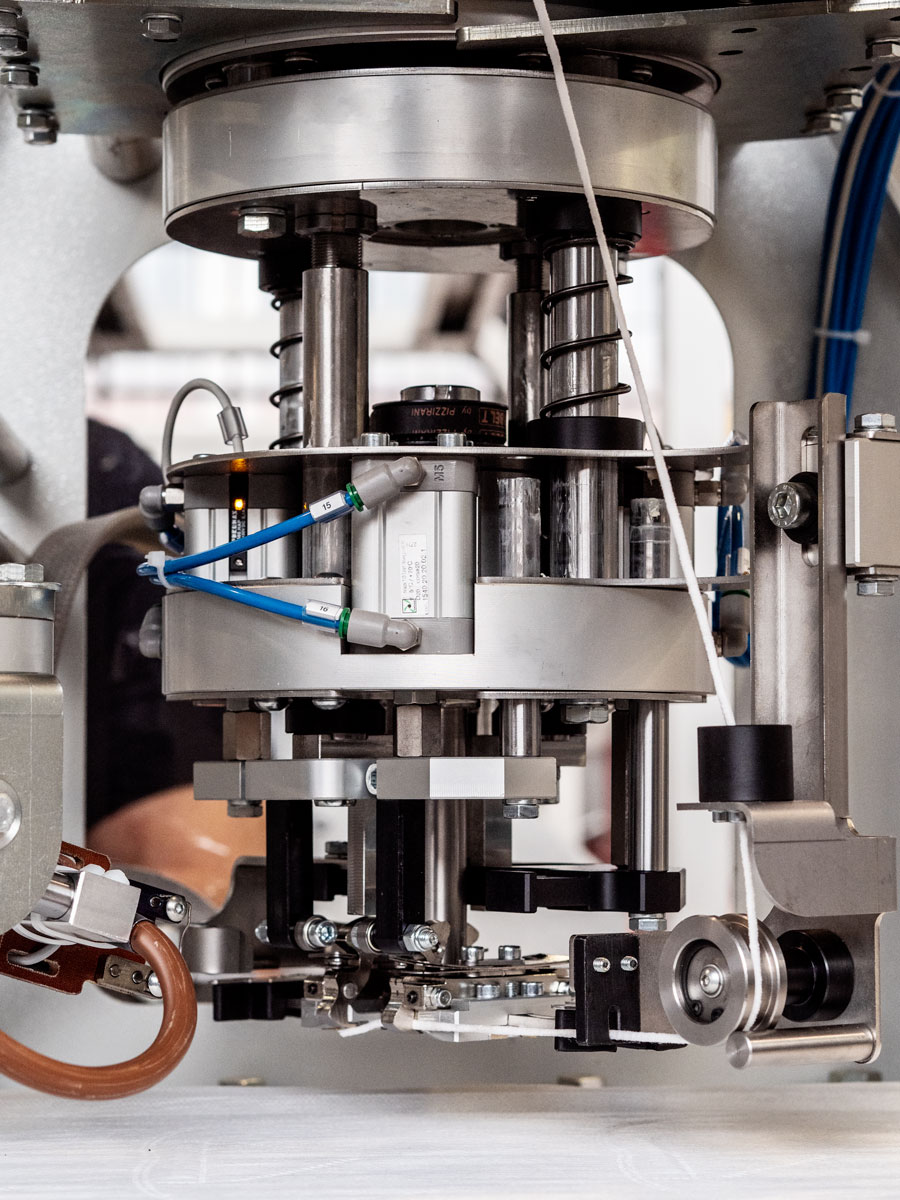

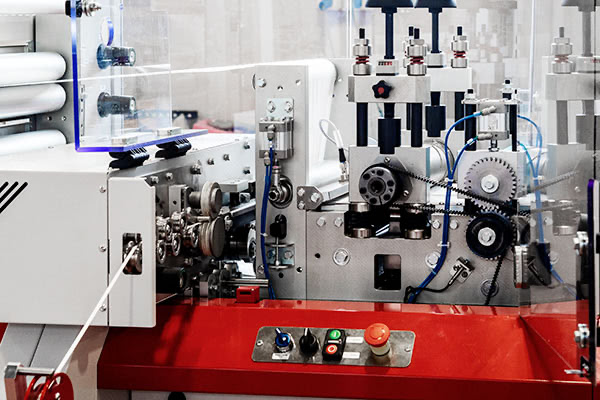

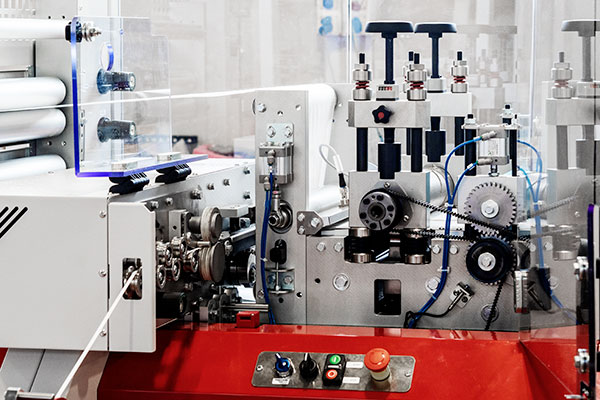

Rotary laces welding system, managed by two Stepper motors with digital encoder and digital drive management system
Production speed: about 3,000 masks/hour
Plant Weight: about 2,800 kg
Automatic parts counting function
Possibility to integrate in the line automatic filter insertion (optional)
System complies with CE regulations.
Contact zones stainless steel masks
Electrical panel in compliance with standards, with safety modules for the management of guards
Operator safety protections - in compliance with CE regulations
Possibility to integrate automatic single mask packaging system through flowpack (optional)
Possibility to integrate UVC sanitizing system of the fabrics, through UVC lamps (optional)

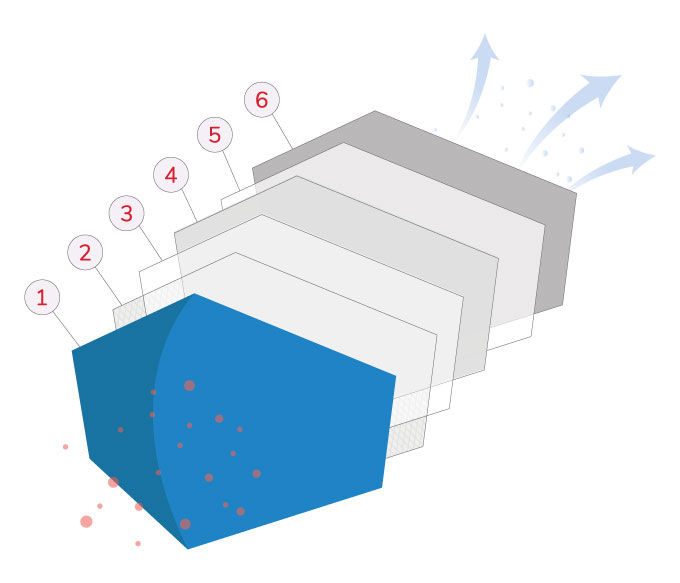

The UNI 149:2009 regulation does not provide a specification of the materials to be used. However, the finished product must comply with the characteristics required in the standard, and must be suitable to pass the tests reported in the standard. The information material can be downloaded free of charge after registration on the portal: UNI 149:2009.
Here is what the customers who bought the machine for the production of masks think about it.
Excellent machine that has allowed us to produce and sell with excellent results in terms of sustained volumes.
We have chosen to produce masks even if our company deals with something else. An investment that has allowed us to make excellent results in hard times.
An innovative product, totally made in Italy able to produce quickly and efficiently.
