Header BT 600 Bottom loading

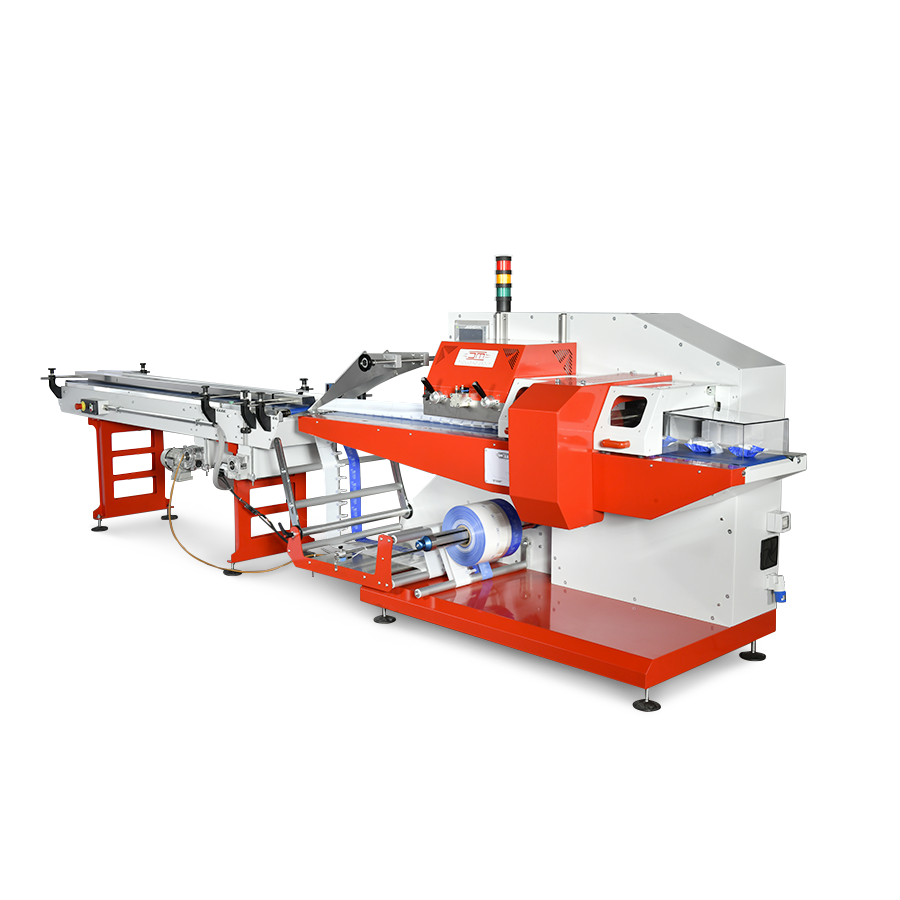

Bt 600 Bottom loading

Horizontal packaging machine, designed for the packaging of fragile products that are difficult to pack.

Characteristics

Characteristics

Horizontal packaging machine, designed for the packaging of fragile products that are difficult to pack.

120 PPM
600 mm

Technical characteristics

  • Power supply 220 V
  • Weight 700 Kg
  • Sealing bars 120, 150 o 180 mm
  • 3 pairs of rollers, the first two for the film feed, the third for sealing (diam 120 mm)
  • Roller stack with motorised lift system.
  • Safety casing with stoppage system in case of opening.
  • Motorised product unloading belt.
  • Emergency buttons with immediate interruption of the work cycle.
  • End-of-line courtesy buttons
  • Photocell for print centring included.
  • Max film reel width 600 mm.
  • Expandable reel-holder shaft
  • Sliding surfaces in AISI 304 steel compliant with CE standards
  • Dimensions 4000 x 630 x H1700
  • Max speed120 pcs/min
  • Easy-to-open crumb collector casing

Technology

  • 3 axles controlled by servo motors and Schneider drive.
  • CAN Bus communication
  • Plc with integrated 7” colour touch screen
  • Ability to store product recipes
  • Machine backup including parameters and recipe that can be exported and imported via USB stick
  • Print and product centring via touch screen.
  • Easy diagnosis for problem solving.
  • Connectable to teamviewer for assistance via LAN cable and VNC
  • Machine state indicator signal.

Optionals

  • Rotary or heat transfer printer
  • Ethyl alcohol nebuliser
  • AISI 304 stainless steel body
  • No product no Bag
  • Euroslot
  • Zigzag blades
  • Fixed conformer.
  • Elongated bench
  • Belt phase modifier
  • Hot roller pneumatic opening
